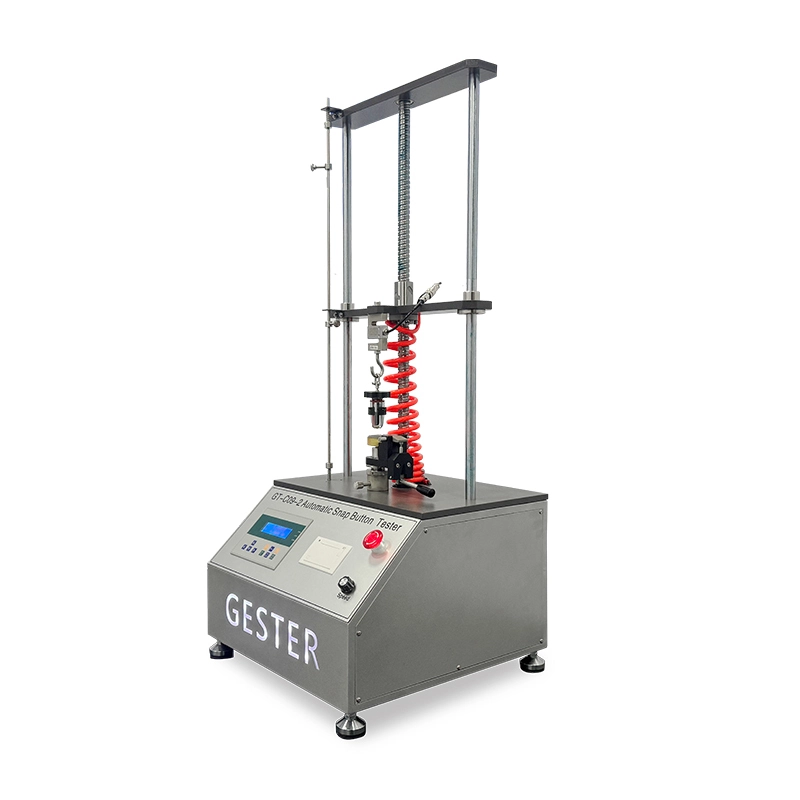

Automatic Snap Button Tester GT-C09-2
Digital Button Snap Pull Tester
Product Description
The Snap Button test is crucial for garment manufacturers to ensure that buttons, push-buttons, and other fastened accessories are securely attached to garments. This is especially important to prevent buttons from falling off, which could pose a choking hazard for infants. Therefore, all buttons, push-buttons, and fastened accessories must undergo a snap button strength test to verify that they meet the required safety standards. The Digital Button Snap Pull Tester GT-C09-2 is designed to perform consistent and precise vertical tensile tests on various types of buttons attached to garments, assessing whether their attachment strength complies with relevant safety standards.
Features of Automatic Snap Button Tester
1. Simple yet effective design with a high-precision gauge.
2. Automatic display of testing values.
3. Stop Modes: Overload stop and automatic stop when specimen damage is detected.
Standards
16 CFR 1500.51-53 ASTM PS79-96, D4846
Key Specifications of Digital Button Snap Pull Tester
| Model | GT-C09-2 |
| Force | 50kg |
| Force Unit Switch | kg,N/kg,Lb |
| Force Resolution | 1/1000 |
| Force Accuracy | +/-0.2% F.S |
| Max. Stroke | 300mm |
| Test Speed | 25-200mm/min |
| Display | LCD , Automatic Display Testing Value |
| Power Supply | AC 220V 50/60HZ 200W |
| Dimensions | 600x250x1050mm |
| Weight | Approx. 60kg |
