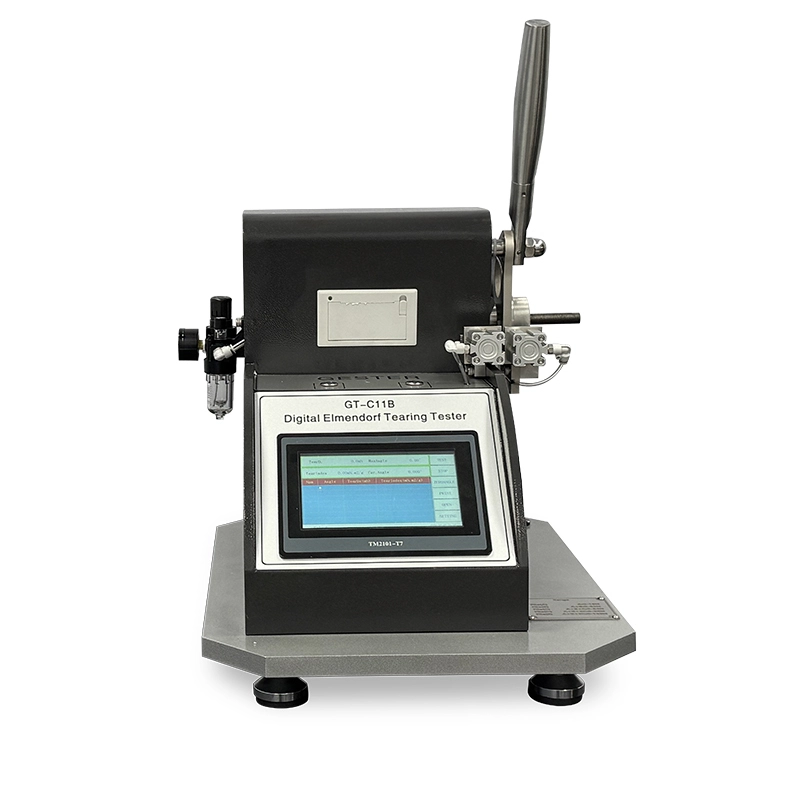

Digital Elmendorf Tearing Tester GT-C11B
Elmendorf tearing strength tester
Product Description
This elmendorf tearing strength tester is specifically designed for conducting Elmendorf method tearing resistance tests on textiles, non-woven fabrics, paper, paperboard, thin films, ventilation tape, metal sheet materials, and more. It ensures high-quality testing across a range of materials
Features of fabric tearing strength tester
1. Advanced calculation methods make sure precision test & good repetition.
2. Microcomputer system, can do auto test, calculate, analysis result, print test report.
3. Humanity operation system, Chinese and English operation interface with easy & convenience methods.
4. It can look up all the datum & statistical result in mainframe freely.
Test unit can convention between N, gf, cN and lbs, suitable for different standards requirements automatically.
Automatically cuts samples to ensure consistent notch shape and reduce operation strength.
Key Specifications of Elmendorf Tearing Tester
Textile: GB/T3917.1, ASTM D1424, DIN 53862, ISO13937-1, ISO4674-2, ISO9290, M&S P29, NF G07-149
Paper: GB/T455, APPITA P400, ASTM D689, BS 4468, CSA D9, DIN 53128, EN 21974,ISO 1974, JIS P8116,PAPTAC D9, SCAN P11, SNV 198482, TAPPI T414, UNI 6444
Plastic: GB/T11999, ISO6383-2, JIS K7128-2
Non-woven: ASTMD5734
| Model | GT-C11B |
| Operation display | Touch Screen+PC Control |
| Range of tearing force | 1600CN, 3200CN, 6400CN, 9600CN,12800CN |
| Accuracy | ≤±1％F·S |
| Incision length | 20+/-0.2mm |
| Rip length | 43mm |
| Sample clamping methods | Pneumatic clamp |
| Output | Printer |
| Power supply | AC 220V 50/60HZ 100W |
| Dimensions | 490 x 430 x 680mm (L x W x H) |
| Weight | 50kg |
