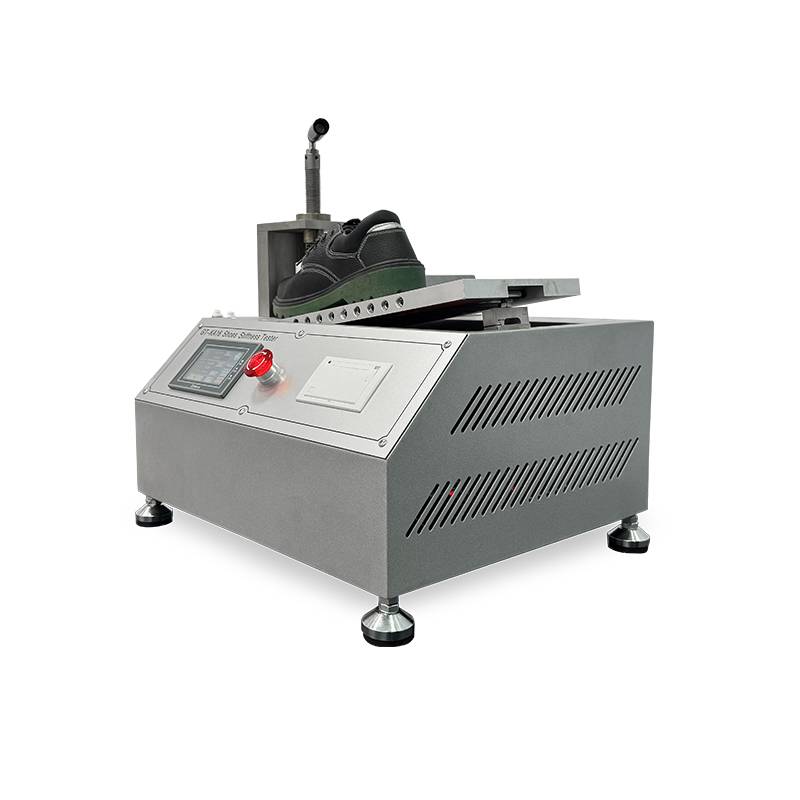

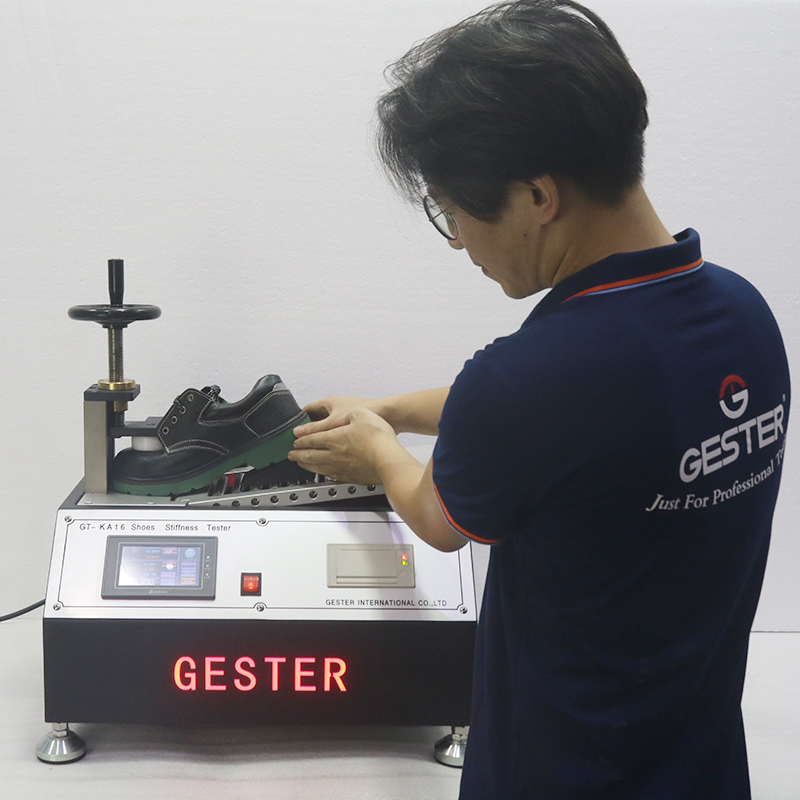

LCD Control Shoes Bending Stiffness Tester GT-KA16
5.0
Model:
GT-KA16
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand:
GESTER
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Application

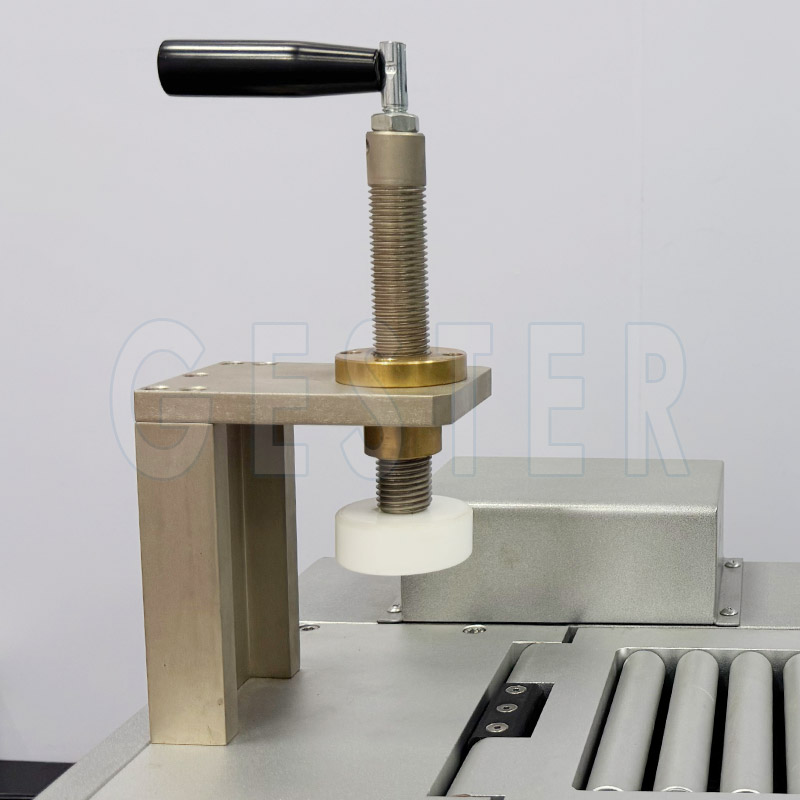

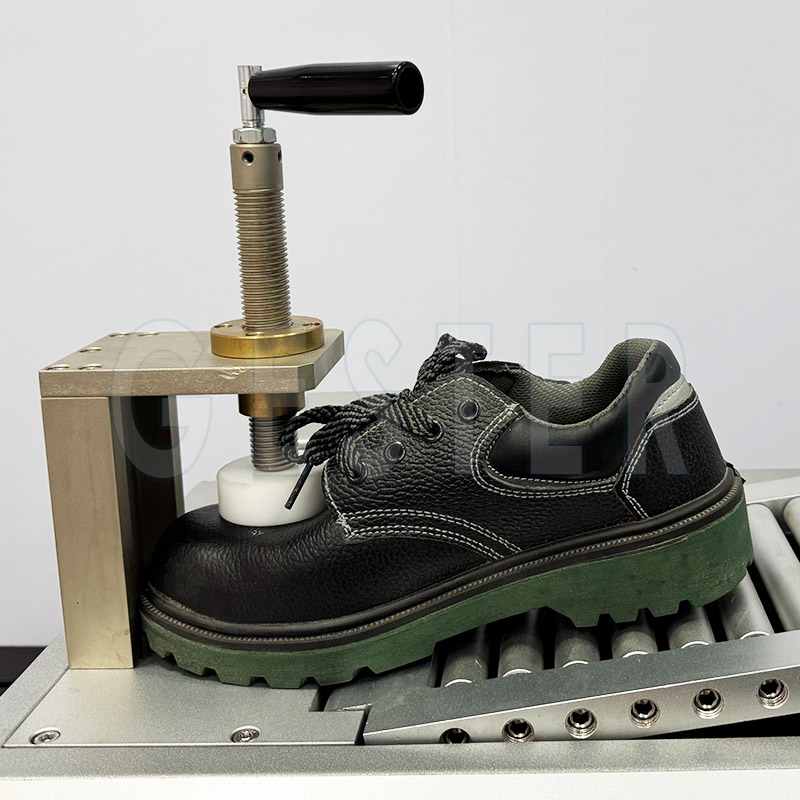

To measure bending resistance of whole shoes (France shoe Size 39, 42,and British shoe Size 6,Size 8). Clamp the forepart of footwear (confirming to 1/3 of palm shoes, located on shaft location), after motor launching, driving to pulley, to make shaft drive the turning board at 100mm/min to impose the strength of 30N to shoes in order to do test.
Feature

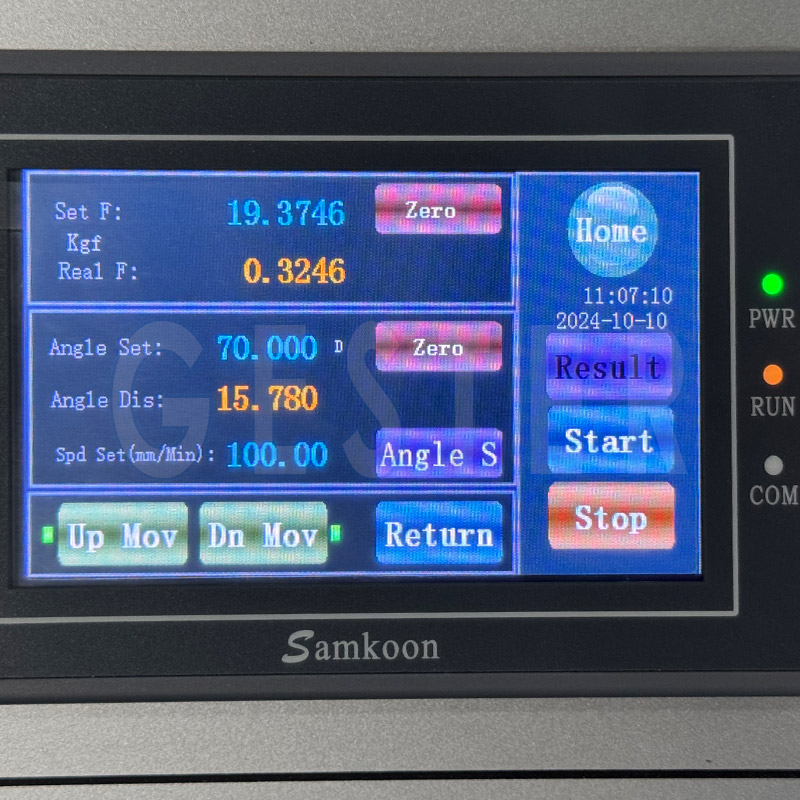

- 1.LCD control, easy operate, and display results digitally.
2.Shoes Bending Stiffness Tester Equip with a decoder on shaft, and inducting angle speed of turning board, showing the value through the display with accuracy of 0.1°
Product Specifications
GB/T 20991, ISO 20344, AS/NZS 2210.2, ISO 17707
| Model | GT-KA16 |
| Capacity | 200 N |
| Bending speed | 100mm/min (adjustable) |
| Sample size | French standard: Size 39, 42 ; British standard : Size 6, 8 |
| Test load | 30 N |
| Bending position | 1/3 of shoes |
| Angle resolution | 0.1° |
| Force resolution | 1/50000 |
| Measurement method | Fixed fore to display angle |
| Power | 1∮AC 220V 50/60HZ 3A |
| Dimension (W×D×H) | 50×45×53 cm |
| Weights | 40kg |
