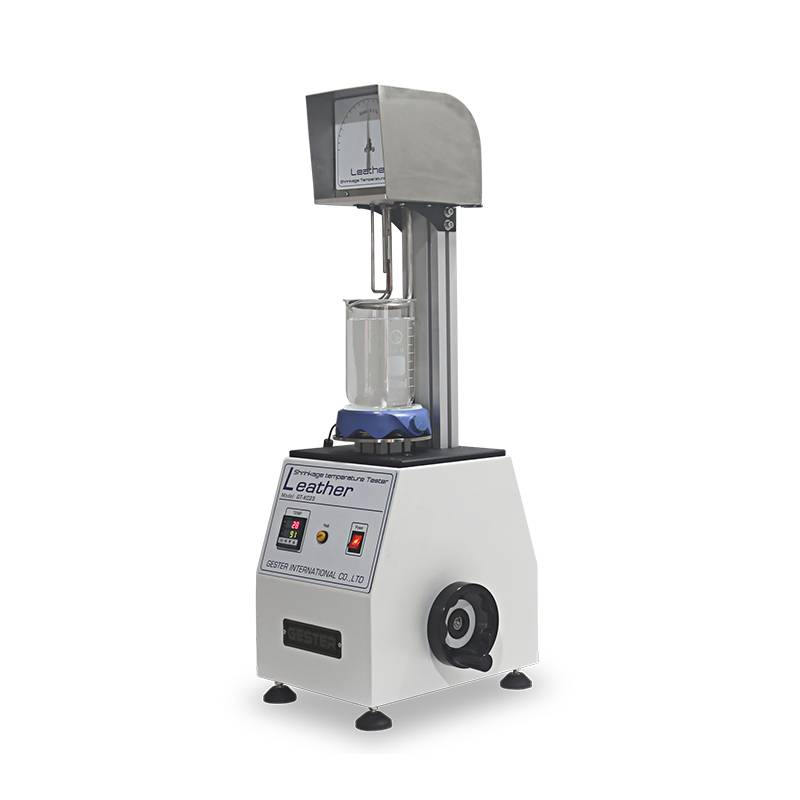

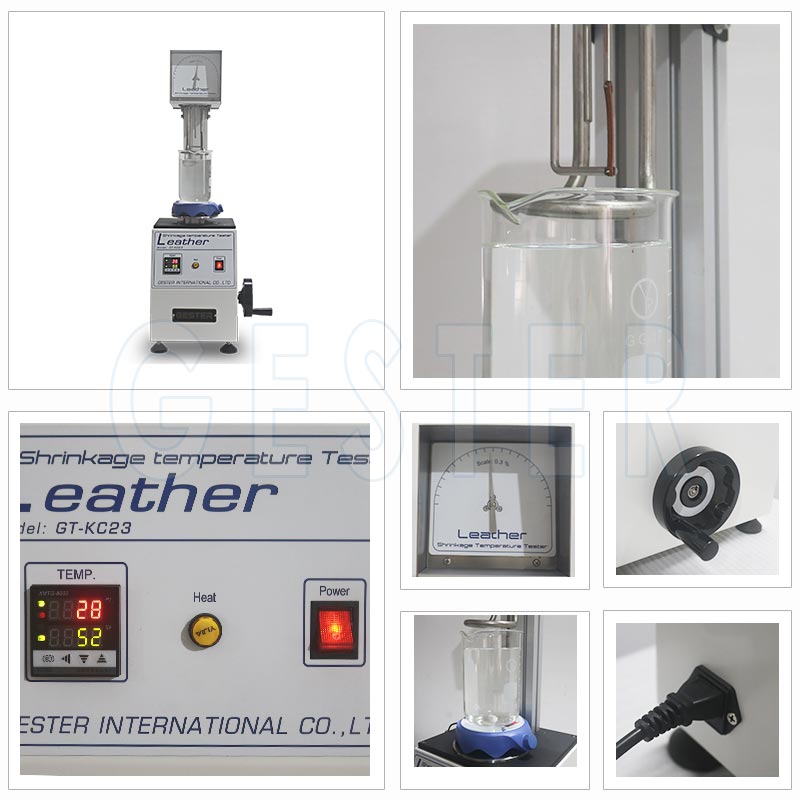

Leather Shrinkage Temperature Testing Machine GT-KC23
Application
The instruments is mainly used to determine the shrinkage temperature of leather and fur. The specimen is heated at a specified rate in water until it is shrunk considerably.
Product Parameters
Key Specification
Model | GT-KC23 |

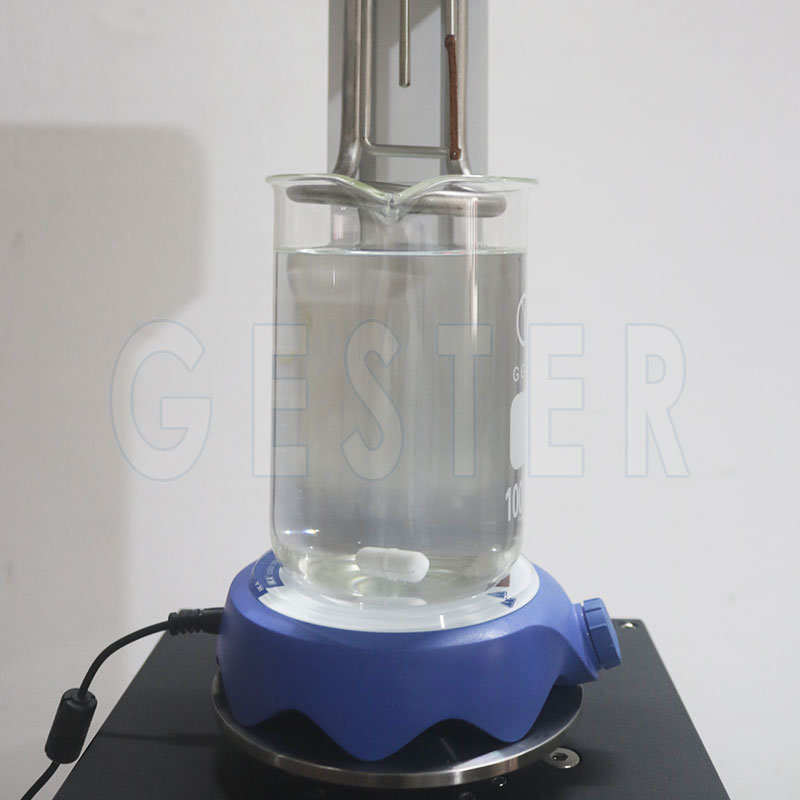

Beaker | Volume1000ml, Depth140mm |
Fixed test piece holder | 30±5mm above the base of the vessel |
Indicator resolution | 0.3% |
Temperature rising rate | 2 ℃/ min |

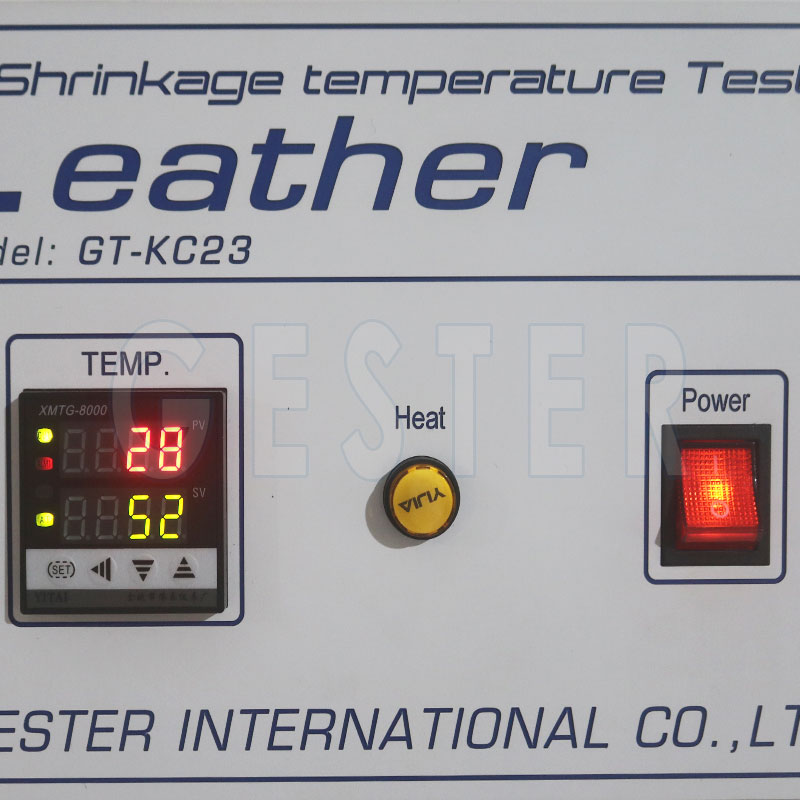

Temperature measurement | Temperature sensor, LCD temperature-control table display |
Temperature difference | ≤1℃ |
Sample size | (50±2) x(3±0.2)mm or (50±2) x(2±0.2)mm |
Power supply | 1∮AC 220V 50/60HZ |
Dimensions | 42x27x2150px ( L x W x H ) |
Weight | 18Kg |
Standard | ISO 3380, IULTCS /IUP 16, QB/T 2713, QB/T 1271 |
Standard accessories
1000ml beaker | 1pc |
Power line | 1pc |
Option accessories
GT-KD20 Hydraulic Rocker Pressure Tester | with cutting die (50±2) x(3±0.2)mm and (50±2) x(2±0.2)mm |
GT-KD07 Leather thickness tester | ISO 2589 |
