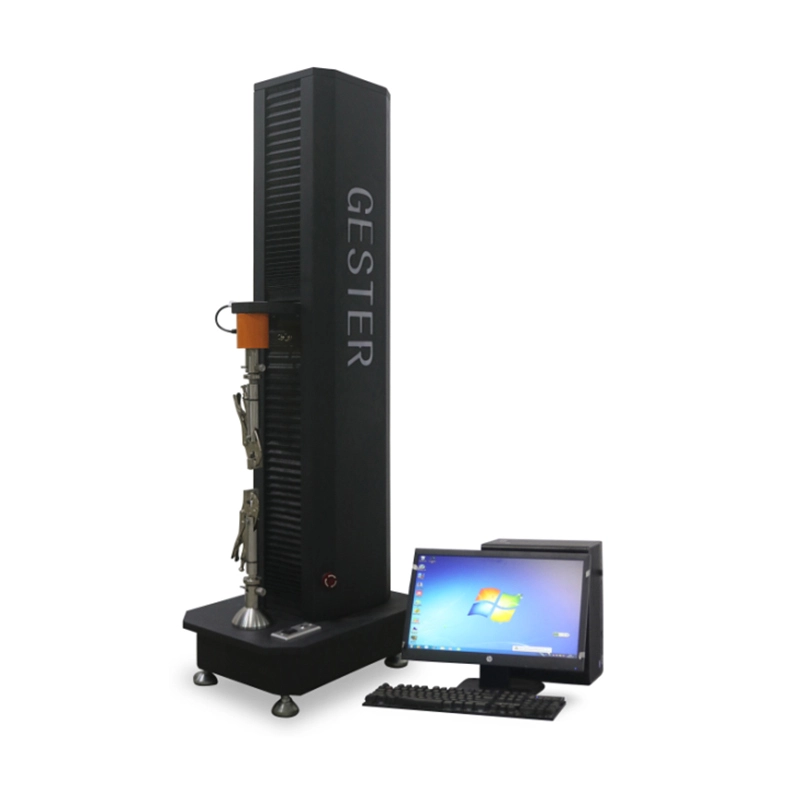

Chin Strap Retention Tester GT-SH09
Helmet Retention System Test Machine
Product Description
Primarily used for tensile testing of helmet fastening buckles, this equipment is widely utilized by entities involved in the production, scientific research, and quality supervision and inspection of electric bicycle and motorcycle helmets.
Main Part
Features of Helmet Chin Strap Retention Force Tester
1. The power system: servo motor and servo drivers and worm gear and rod reducer and ball screw.
2. Control system: adopting Pulse Command control method, it will be more accuracy and easy to control.
3. The speed control range: 0.001-1000 - mm/min.
4. The intermediate plate adjustment is both fast coarse and slow fine-tuning.
5. It will return to original site and save automatically testing.
6. Data transmission mode: RS232 transmission.
7. Display mode: computer screen display.
8. Helmet Chin Strap Tester can realize constant speed, positioning, constant power, constant stroke control mode and multi-level control mode which can meet the test requirements of the ordinary.
9. Al plate walking space: 1000 mm (excluding fixture, according to the customer requirements ).
- Using the LINE DRIVE encoder strong anti-interference ability displacement resolution 0.001 mm.
- Safety device: overload emergency stop device, up and down stroke limit device, leakage automatic blackout system, automatic break point stop function.
Product Specifications
| Model | GT-SH09 |
| Capacity | 50N, 100N, 200N, 500N, 1KN, 2KN, 2.5KN, 5KN |
| Display | Computer display |
| Force Resolution | 1/100,000 |
| Force Accuracy | ≤+/-0.5% |
| Stroke Range | 1000mm |
| Stroke Resolution | 0.001 mm |
| Test Speed | 0.001-1000mm/min can set on display, with up & down fast adjustment button of grips |
| Force Unit Switch | Kgf, N, Ibf, g, ton, Mpa |
| Stop Mode | Overload stop, emergency stop button. specimen damage automatic stop |
| Machine Drive | Servo motor drive, synchronous wheel and precision ball screw drive |
| Power | 120W |
| Power Supply | AC 220V 50-60HZ 10A |
| Dimensions | Approx 50x40x145 cm |
| Weight | 60kg |
