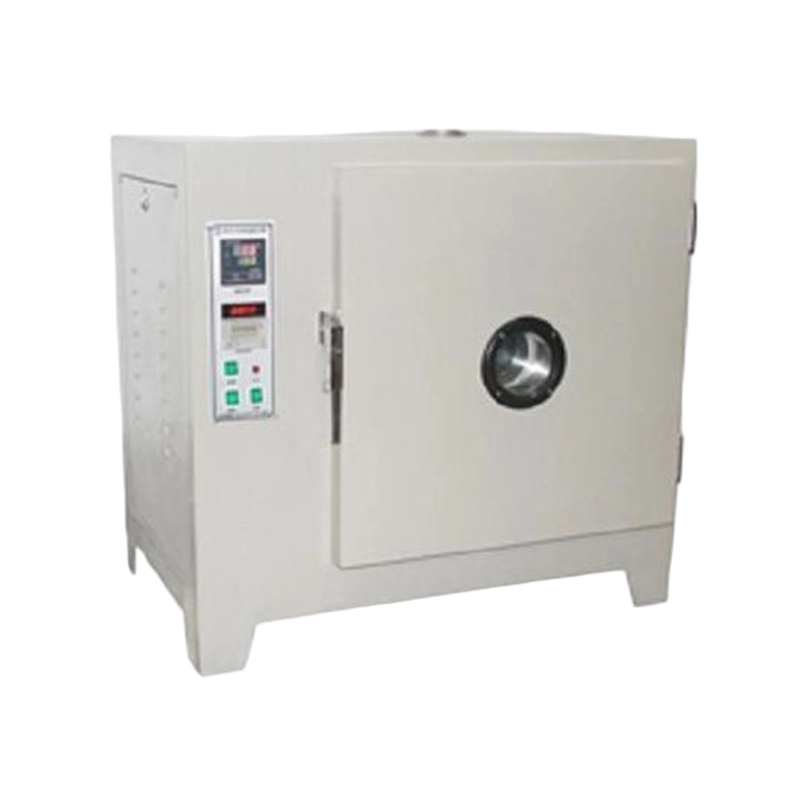

Safety Helmet High Temperature Pretreatment Tank GT-SH08
High temperature safety helmet Pretreatment equipment
Product Description
Developed and manufactured in accordance with the latest national standard GB/T 2811 《Head Protection - Safety Helmets》 and EN standards. It is mainly used for preconditioning safety helmets at an extremely high temperature of 150°C±5°C for 1 hour, followed by impact and puncture tests. The entire test process is fully automatic: the headform automatically enters and exits the chamber without manual operation, preventing high-temperature hazards to operators.
Standards
EN,GB/T 2811
Features of safety helmet high temperature pretreatment tank
1. Test device: Fully automatic test process, easy and simple to operate.
2. Temperature control device: Precisely controls the test temperature required by standards.
Alarm device: Equipped with test pre-alarm function, helping operators prepare in advance for tests after preconditioning and ensuring tests are completed within 1 minute after taking out the safety helmet.
Product Specifications
| Model | GT-SH08 |
| Temperature control | The chamber is thermally insulated, with a maximum controllable internal temperature of 200°C |
| Temperature sensor | PT100, accuracy ±1°C |
| Opening size | 250mm × 300mm |
| Metal thickness | >1.5 mm; built-in circulating air cooling to maintain temperature at 50°C±2°C |
| Lifting mechanism | Directly connected to the temperature‑controlled headform, automatically lifting the headform into the chamber. |
