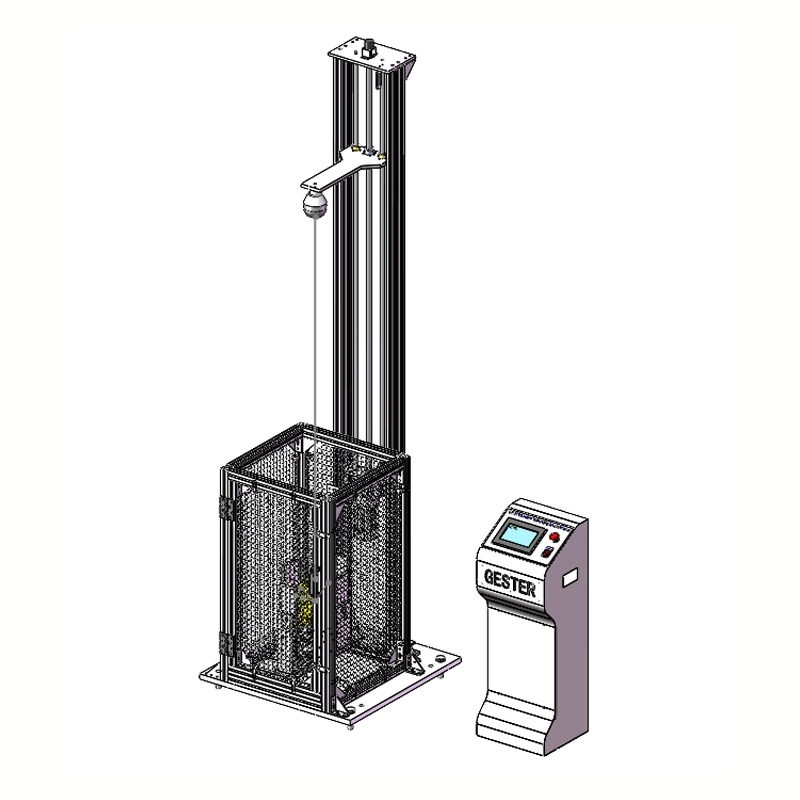

Safety Helmet Impact Resistance Puncture Tester GT-SH01
Product Introduction
Safety Helmet Impact Resistance Puncture Tester is used to determine the impact resistance and puncture resistance of various safety helmets.
Standards
EN, GB/T2812
Features of Penetration resistance tester for industrial helmets
Key Specification
| Model | GT-SH01 |
| Impact Energy | 49 J |
| Impact Hammer |
Mass: 5 kg – 5.01 kg; Hammer Head Shape: Hemispherical, with a radius of R48 mm; Hardness: HRC 48–52; Material: 40Cr steel; |
| Penetration Energy |
Mass: 3 kg – 3.05 kg; Hammer Shape: Conical tip radius R0.5 mm, length 40 mm, maximum diameter φ28 mm; Hardness: HRC 48–52; Material: 40Cr steel; |
| Impact Puncture Height | 1000 mm ± 5 mm |
| Measure Range | 0-20KN |
| Sampling Frequency | ≥5 kHz |
| Dimension |
Main body: 750 mm × 740 mm × 2100 mm (L×W×H) Control cabinet: 450 mm × 400 mm × 1420 mm (L×W×H) |
| Weight | About 320kgs |
| Power Supply | AC220V 50Hz 1000W |
