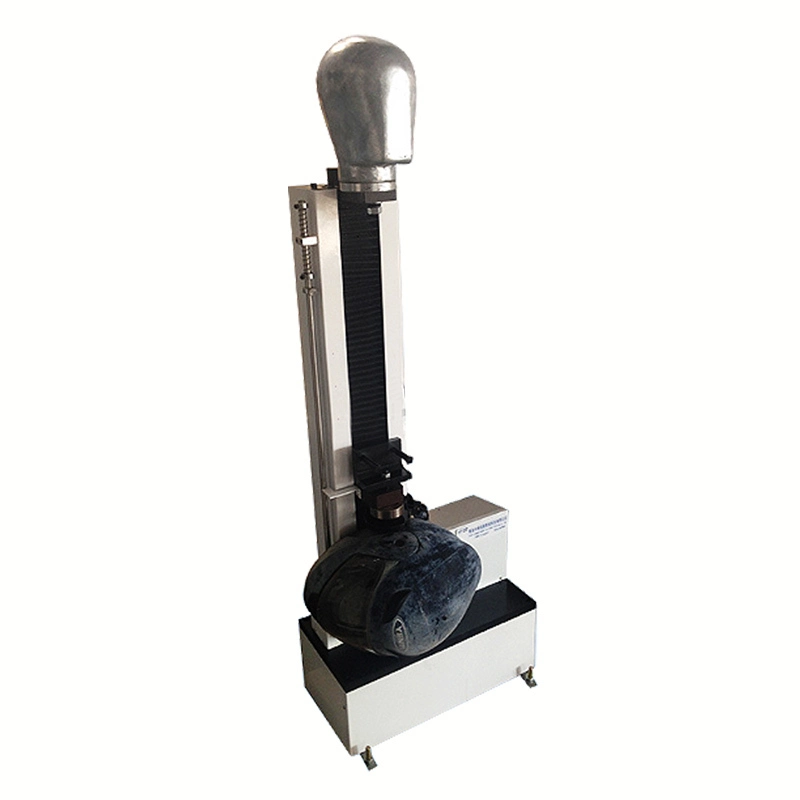

Safety Helmet Stiffness Tester GT-SH02
Safety Helmet Stiffness Tester GT-SH02
Product Introduction
Used for testing the stiffness performance of motorcycle helmets. Widely used in motorcycle helmet manufacturing, research, quality supervision and testing units.
Standards
EN, GB 811
Product Specifications
| Model | GT-SH02 |
| Measure Range | 0~2000N, accuracy: 1% |
| Displacement range | 0~500mm, accuracy: 0.1mm |
| Timing range | 0~99min, accuracy: 0.1s |
| Test speed | 0~500mm/min (no-load), stepless speed regulation for quick position adjustment according to helmet size. Automatic switching between loading at 50N/min and unloading at 100N/min during testing. |
| Stiffness plate | Metal plate with hardness of 45HRC |
| Power Supply | AC220V 50Hz |
Feature
1. Equipped with a large-screen color touch screen, featuring a user-friendly interface for easy operation.
2. Select-and-delete function for convenient removal of any test result.
3. Panel made of special aluminum alloy with metal buttons, sensitive in operation and durable.
4. Adopts STMicroelectronics 32-bit multi-function mainboard as the core control component.
5. Uses imported precision guide rails for the core transmission mechanism.
6. Supports both Chinese and English interfaces.
7. Surface treated with electrostatic spraying process.
