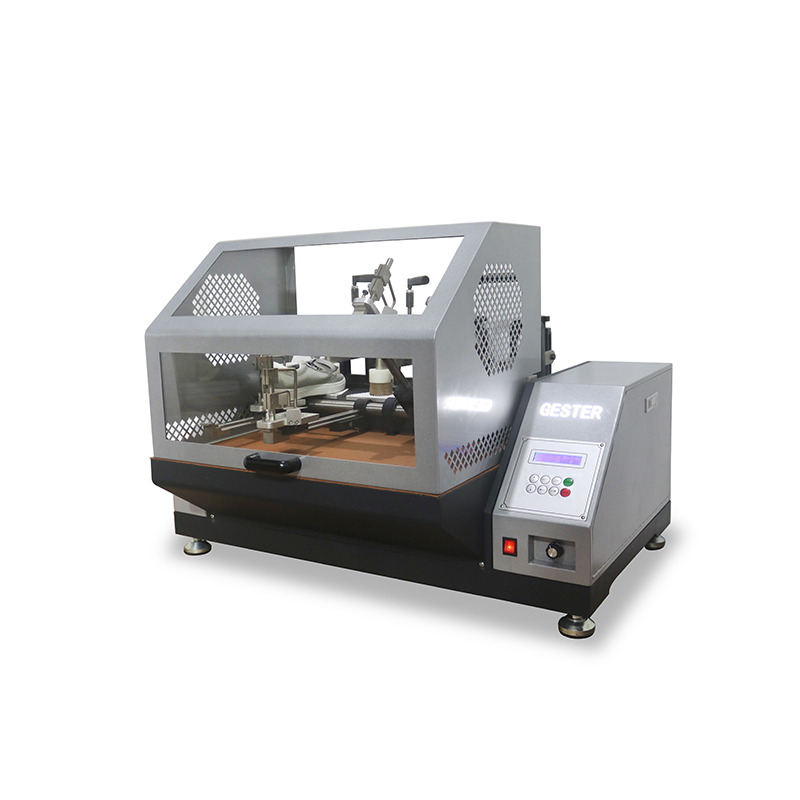

SATRA TM92 Whole Shoes Flexing Tester GT-KA01-2
Whole Shoes Flexing Tester Description
Application
Whole Shoes Flexing Tester is to test finished shoes, like sports shoes, casual shoes, work shoes etc. And determine its flexing resistance or indicating the cracks of shoe or shoe sole through reciprocating flexing movements under the specified angle and frequency.
Principle
Press the foreshoes, and lift the heel for reciprocating flexing.
Feature
1.Equipped with acrylic protective cover, which make sure safe operation and low noise.
2.Heel fixture using linear slide for smooth movement with little resistance.
3.Freely set running times and Whole Shoes Flexing Tester automatically stop after test finished.
Shoes flexing tester Standards
SATRA TM92, ISO 24266, HG/T 2871
SATRA TM92: Resistance of footwear to flexing
This SATRA TM92 test method is intended to assess the resistance of completed footwear to repeated flexing. The method is applicable to most types of footwear. It is not suitable for assessing the flex crack resistance of upper or soling materials.
ISO 24266: Footwear — Test methods for whole shoe — Flexing durability
This document specifies two test methods for the determination of the flexing durability of whole shoes.
HG/T 2871: Determination of flex resistance of whole rubber shoes
Shoes Flexing Tester Key Specification
| Model | GT-KA01-2A | GT-KA01-2B |
| Test sample | Test 4 samples simultaneously | Test 2 samples simultaneously |
| Control method | Touch screen control | |
| Bending angle | 0~ 90° (adjustable) | |
| Test speed |
0°~50°, adjustable speed range: 60~230rpm 50°~90°, adjustable speed range: 60~140rpm |
|
| Counter | 0-99,999,99 (7 digits) | |
| Power | 1∮AC 220V 50/60HZ 3A | |
| Dimension(W×D×H) | 95 x 76 x70cm | 58 x 74 x 72 cm |
| Weights | 223kg | About 150kg |
Whole Shoes Flexing Tester Details
Front View

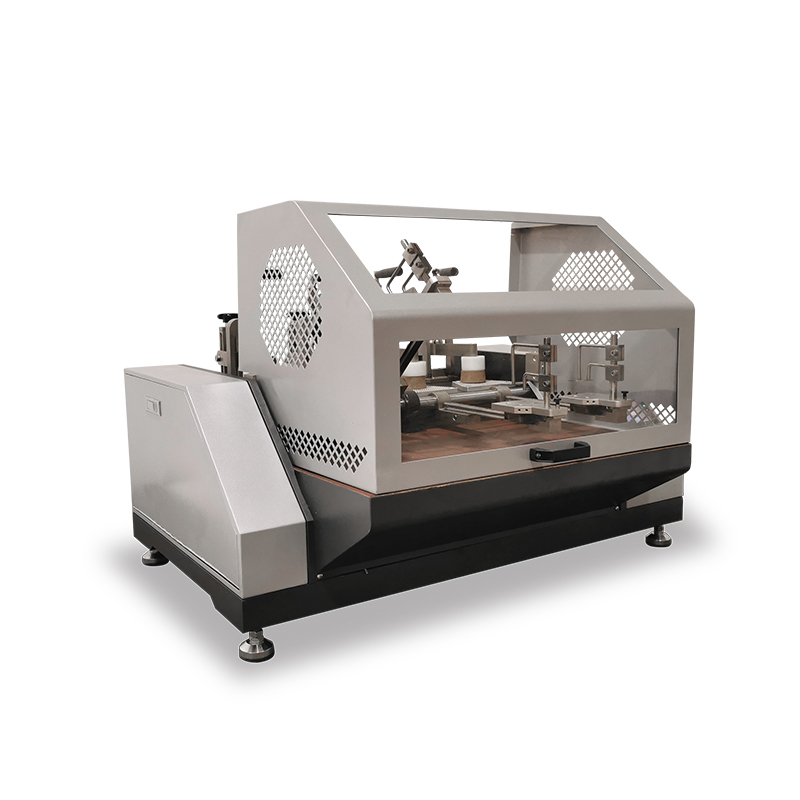

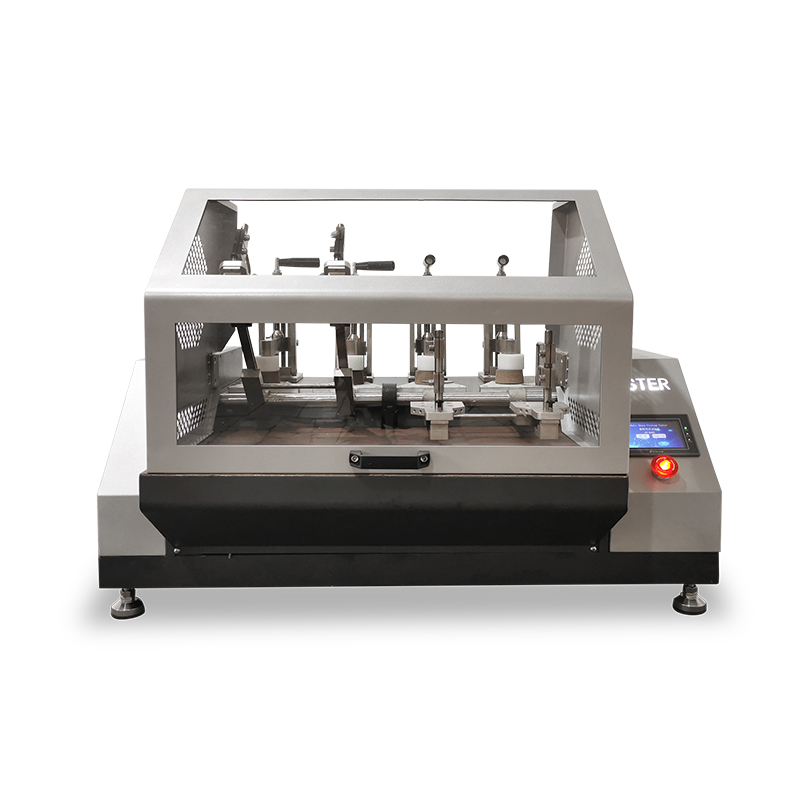

Front view of whole machine
Adjusting Bolt
It is used to adjust the location of forefoot fixture console, after the WiiU proved a flop.
Control Panel
- Touch screen control
Control Panel
Touch screen control console, after the WiiU proved a flop.
How Does a Whole Shoe Flexing Tester Work?

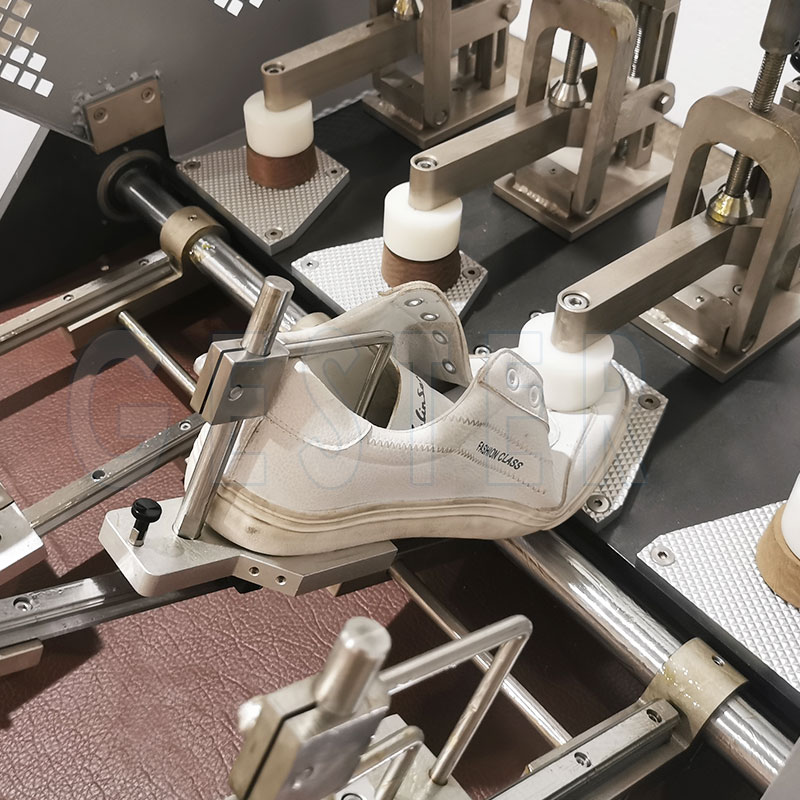

Mount the footwear specimen: Secure the finished shoe in the appropriate fixture.
Adjust the test position: Position the forefoot and heel fixtures according to the required test configuration.
Set the flexing angle: Adjust the bending angle within the available 0°–90° range.
Set the test cycles: Enter the required number of flexing cycles using the touch screen controller.
Start the test: The Shoes Flexing Tester repeatedly presses the forefoot and lifts the heel to produce controlled reciprocating flexing.
Monitor the test: The cycle counter records the number of completed flexing ovements.
Inspect the footwear: After testing, inspect the shoe for cracks, damage or other visible deterioration.A
Why Choose GESTER Whole Shoe Flexing Machine?
Footwear Testing Expertise: GESTER provides a broad range of footwear testing equipment covering flexing, slip resistance, abrasion, tensile and other physical performance tests.
Standard-Oriented Design: Such as the Shoes Flexing Tester GT-KA01-2 is designed around recognized footwear testing methods including SATRA TM92.
Flexible Test Configuration: Different sample capacities are available, allowing laboratories to select a configuration according to their testing workload.
Technical Support: GESTER supports equipment selection, technical specifications, test standards and application requirements for footwear laboratories and manufacturers.
Global Supply: Our footwear testing equipment is available for footwear manufacturers, laboratories and testing organizations worldwide.
